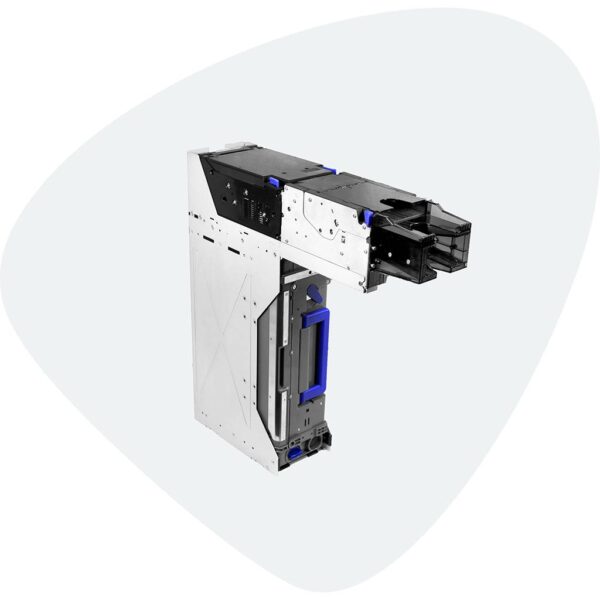

JCM TBV – Transactional Bill Validator

Download the JCM-Global_TBV-Data-Sheet

TBV™ is the best, smartest and fastest solution for single ticket transactions and mass tickets. At processing speeds of 1.7 seconds for fixed-width notes, TBV has tested advanced technology that provides the highest level of counterfeit detection. It is perfect for self-checkout kiosk operations, retail safes, ticketing/transit operations, automatic deposit systems and banking operations.

• Large capacity box
• Box of 2,000 banknotes for easy access
• Banknote passage resistant to dirt and liquids
• Durable construction
• Mass banknote feeder

Specs

Acceptance
Rate98% or higher

Insertion
Mass banknotes up to 50 banknotes

Banknote
sizeLong edge: 110-170 mm, short edge: 60-85 mm

Banknote
insertion address4 directions

Escrow
1 ticket

Dimensions in mm
475.8 (H) x 468.9 (D) x 114 (W)

Weight
Approx. 12 kg

Supply
voltage24V DC (±5%)

Box Capacity
2,000 banknotes (new banknotes)

Interface
USB, photocoupler isolation, RS232C, ccTalk
